Axe Tour of Norway and Sweden: Part 3

On June 5, 2015 by jaustin

After I left Hjerleid Craft School in Dovre I traveled to the coastal town of Sandefjord south of Oslo.  Here I met and spent a few days with Øystein Myhre.  Øystein forges axes and other traditional Norwegian tools in the very cool smithy which he built on his property. Based on his own collection of historical tools and tools brought to him by handworkers and museums, Øystein forges accurate, high quality replicas. Many of the axes and other tools he forges are put directly to use by timber builders for the construction and restoration of old buildings – some as old as the middle ages. On the first day of my visit Øystein forged a large ryarbile, which is an axe used to hew logs for house-building. Øystein explained that there is an enormous variety of axes which have been forged over the centuries in different parts of Norway. The Ryarbile axe was developed in the 1700’s and was particularly common in eastern Norway. Starting about 1860 it was produced on an industrial scale by the Mustad factory and sold all over Norway. It has an edge length of 5″ and weighs a bit over 4 pounds (1900 grams). In use it will be fitted with a straight haft of birch about 22″ long.

AA Oystein Selection 010
Leaving Hjerleid Craft School in Dovre from the train station in nearby Dombaas. View from the station.
AA Oystein Selection 020
Farms in the valleys of Norway’s Oppland.
AA Oystein Selection 030
Scenery further south as the train approaches Oslo.
AA Oystein Selection 040
Oslo Train Station.
AA Oystein Selection 050
Houses near the harbor in the town of Sandefjord.
AA Oystein Selection 060
Church in Sandefjord.
AA Oystein Selection 070
Twilight in the Sandefjord harbor.
AA Oystein Selection 080

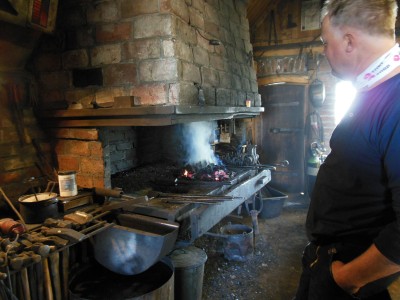

Øystein in his picturesque smithy in the Sandefjord countryside.
AA Oystein Selection 090
Let the mornings work begin.
AA Oystein Selection 100

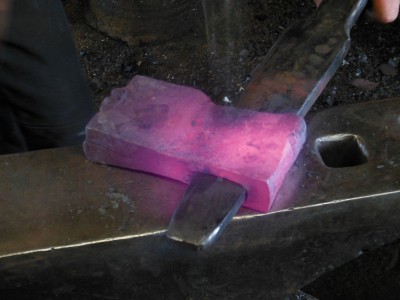

Laying out the axe body for a 4 pound Ryarbile.
AA Oystein Selection 110
Forging begins on the eye-area of the axe. The sides of the eye are thinned out.
AA Oystein Selection 120
Features of profile of the back of the axe are started.
AA Oystein Selection 130
Judging the early progress.
AA Oystein Selection 140

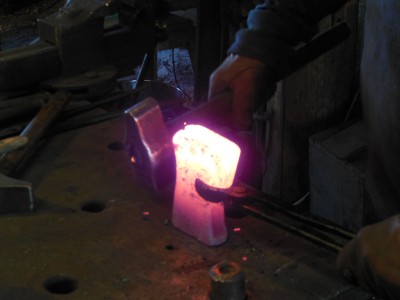

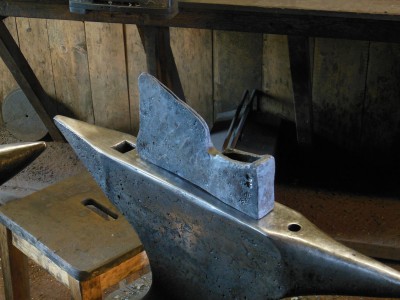

Folding the axe.
AA Oystein Selection 150
Straightening the fold.
AA Oystein Selection 160
Tightening the fold in preparation for forge welding.
AA Oystein Selection 170
Fluxing for the weld.
AA Oystein Selection 180
Bringing the axe body to a welding heat.
AA Oystein Selection 190

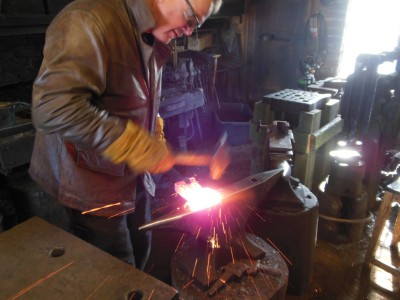

Welding the axe body. This will take several heats.
AA Oystein Selection 200
Some shaping of the back of the axe is done during welding.
AA Oystein Selection 210
The first (smaller) of two mandrels is inserted into the eye to begin shaping it. The weld has to be GOOD.
AA Oystein Selection 220
Shaping the back of the axe on the mandrel. The size of the eye will be progressively increased using a final, larger mandrel, and outside form of the eye will be refined at the same time.
AA Oystein Selection 230

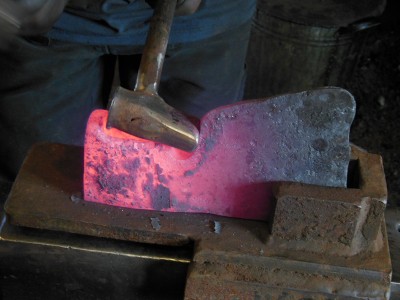

Working the poll of the axe.
AA Oystein Selection 240
The shaping with the first mandrel is done and the weld is good, as evidenced by the sealed seam at the front of the eye.
AA Oystein Selection 250

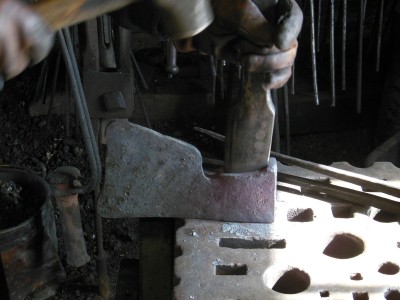

The second and final mandrel is driven into the eye. Again, this calls for a good weld.
AA Oystein Selection 260
The shape continues to be refined both inside and outside the eye.
AA Oystein Selection 270
The front of the axe is opened to set in a tool-steel bit.
AA Oystein Selection 280
But before that Øystein calls for a morning break. This starts by collecting eggs from his hens and frying them. Yummm!
AA Oystein Selection 290
View from the kitchen table to the smithy.
AA Oystein Selection 300
Back to work. Øystein marks out material for a bit from his old stock of SK7 – the steel preferred by blacksmiths in Scandinavia for the edges of wood cutting tools.
AA Oystein Selection 310
The bit is driven into place in the cleft of the axe body.
AA Oystein Selection 320
The axe body with inserted bit is “packed” together at a high heat before welding begins. Norwegian smiths like to heat the weld-zone to a high heat to tighten the gaps between the pieces and even up the edges before they actually start forge welding.
AA Oystein Selection 330
A properly packed bit and body – ready for forge welding.
AA Oystein Selection 340

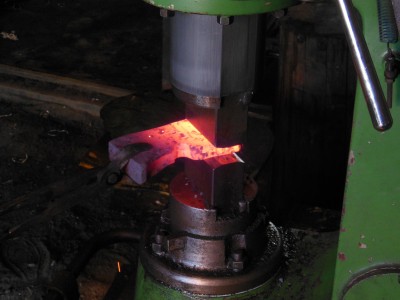

Welding in the axe bit on the power hammer.
AA Oystein Selection 350
Shaping the axe during the welding process.
AA Oystein Selection 360

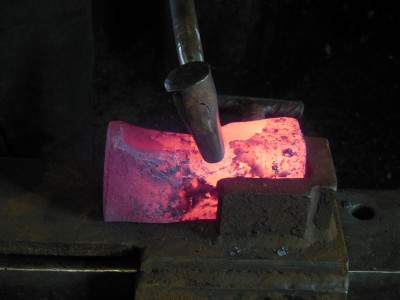

Fullering a notch between the eye and blade. This is a standard feature on the Ryarbile.
AA Oystein Selection 370
Øystein takes another welding heat.
AA Oystein Selection 380
More welding.
AA Oystein Selection 390
Shaping the blade on the power hammer.
AA Oystein Selection 400
Working on blade details.
AA Oystein Selection 410
Cleaning up the eye. A good form inside the eye is important for a good haft fit-up.
AA Oystein Selection 420
Sharpening the edges for a good, clean form – solely by hammer work.
AA Oystein Selection 430
Last mandrel fit-up.
AA Oystein Selection 440
The final forging prior to trimming and grinding.
AA Oystein Selection 450
Marking the blade for trimming. Notice that there is not much to trim off because the forging was done accurately to begin with.
AA Oystein Selection 460
Trimming operation.
AA Oystein Selection 470
Shaping the cutting edge.
AA Oystein Selection 480
Filing away any rough edges on the form.
AA Oystein Selection 490
The finished Ryarbile – ready for heat treating.
AA Oystein Selection 500
Normalizing the axe.
AA Oystein Selection 510
The axe cools down from the critical temperature.
AA Oystein Selection 520

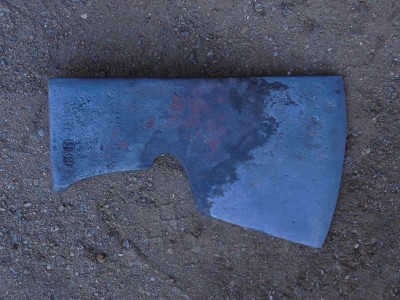

Øystein’s finished Ryarbile, ready for quenching and tempering. At the end of the day we left it at this stage – a beautiful forging.
AA Oystein Selection 530
Øystein and I after a great day of work (for Øystein).
AA Oystein Selection 540
Time for a gourmet meal. What an awesome host!
